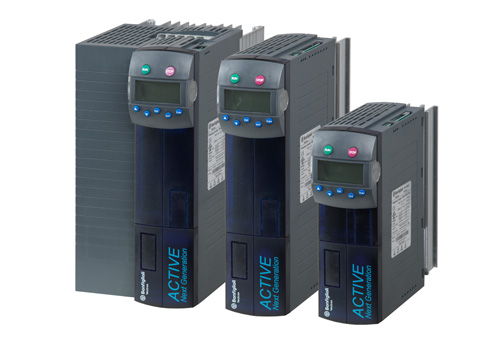

ANG Series

Performance, Smanrtness, Precision

Model: ANG Series

Datasheet:  Download here

Description:

Technical data:

Power Range (ANG210)
0.25 ... 9.2 kW / 1- or 3-ph 200 - 240 V / 50 - 60 Hz (± 10%)

Power Range (ANG410)
0.25 ... 400 kW (1200 kW in parallel connection)
3-phase 360 - 480 V / 50 - 60 Hz (± 10%)

Power Range (ANG610)
160 ... 400 kW (1200 kW in parallel connection)
3-phase 690 V / 50 - 60 Hz (± 10%)

Type of Control
Vector sensor less and closed loop control for Permanent Magnets, Induction and Synchronous Reluctance machines.

Overload Capacity
150% for 60 seconds and 200% for 1 second

Switching Frequency
2, 4, 8, 12, 16 kHz (depending on size)

Enclosure
IP20 (EN 60529)

EMC Filter
Integrated up to 9.2 kW (EN 61800-3)

Main Standard Hardware features

• Integrated safe torque off (STO Sil 2) function
• External 24Vdc supply
• Integrated dynamic braking module
• DC link connection
• Various feedback sensors
• Encoder interface for Resolver
• Cubic Interpolation
• Probe function

Optional Expansion Modules
Expansion of analog, digital inputs and outputs, additional encoder orresolver input, repetition frequency output, System bus

Optional Keypad
Removable keypad KP500 with copy function, Cabinet mounting kit and handheld for keypad

PC Software VPlus
• Windows-based engineering “workbench” with easy interface
• Drive parameters set-up
• Scope function
• Teleservice

Main Software Features
• Positioning function
• Rotary table control
• Master / Slave function with electronic gear
• Power failure regulation
• Function for lift, crane and winch applications
• Spindle control up to 1000Hz
• Traverse function for winders
• Volume flow control
