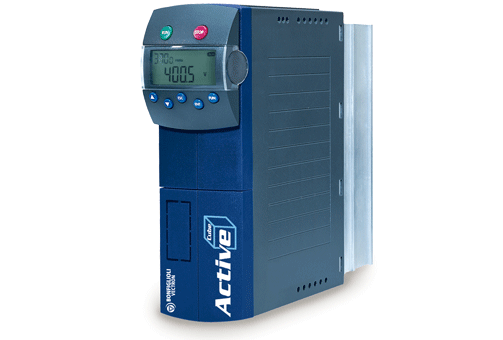

ACTIVE CUBE - Frequency Inverter
Versatility, promptness, accuracy
Model: Active Cube 8
Datasheet: Download here
|
Description:
Bonfiglioli Active Cube is a frequency inverter offering both compactness and flexibility. This specific solution is adaptable on a wide range of machines starting from servo to heavy industry applications.
|
Technical data:
Power Range (ACU210) 0.25 ... 9.2 kW / 1- or 3-ph 200 - 240 V / 50 - 60 Hz (±10%)
Power Range (ACU410) 0.25 ... 400 kW (1200 kW in parallel connection) 3-phase 360 - 480 V / 50 - 60 Hz (± 10%)
Power Range (ACU610) 160 - 400 kW */ three-phase 690 V / 50 Hz - 60 Hz (± 10%) *1200 kW in parallel connection
Type of Control Vector sensor less and closed loop control for Permanent Magnets, Induction and Synchronous Reluctance machines.
Overload Capacity 150% for 60 seconds and 200% for 1 second
Switching Frequency 2, 4, 8, 12, 16 kHz
Enclosure IP20 (EN 60529)
EMC Filter Integrated up to 9.2 kW (EN 61800-3)
Main Standard Hardware features • Integrated safe torque off (STO Sil 2) function • External 24Vdc supply • Integrated dynamic braking module • DC link connection • Various feedback sensors
Optional Expansion Modules Expansion of analog, digital inputs and outputs, additional encoder or resolver input and sincos encoder, repetition frequency output, System bus
Optional Communication Modules PROFIBUS-DPV1, CANopen, RS232, RS485, DeviceNet, EtherCAT®, PROFINET, VABus/TCP, Modbus TCP, EtherNet I/P
Optional Keypad Removable keypad KP500 with copy function, Cabinet mounting kit and handheld for keypad
PC Software VPlus • Windows-based engineering “workbench” with easy interface • Drive parameters set-up • Scope function • Teleservice
Main Software Features • Positioning function • Rotary table control • Master / Slave function with electronic gear • Power failure regulation • Function for lift, crane and winch applications • Spindle control up to 1000Hz • Traverse function for winders • Volume flow control
|
Type
|
Size
|
Power kW*
|
ACU 210- 01 |
1 |
0.25 |
ACU 210- 03 |
1 |
0.37 |
ACU 210- 05 |
1 |
0.55 |
ACU 210- 07 |
1 |
0.75 |
ACU 210- 09 |
1 |
1.1 |
ACU 210- 11 |
2 |
1.5 |
ACU 210- 13 |
2 |
2.2 |
ACU 210- 15 |
2 |
3 |
ACU 210- 18 |
3 |
4 |
ACU 210- 19 |
3 |
5.5 |
ACU 210- 21 |
4 |
7.5 |
ACU 210- 22 |
4 |
9.2 |
Type |
Size |
Power kW* |
ACU 410- 01 |
1 |
0.25 |
ACU 410- 03 |
1 |
0.37 |
ACU 410- 05 |
1 |
0.55 |
ACU 410- 07 |
1 |
0.75 |
ACU 410- 09 |
1 |
1.1 |
ACU 410- 11 |
1 |
1.5 |
ACU 410- 12 |
2 |
1.85 |
ACU 410- 13 |
2 |
2.2 |
ACU 410- 15 |
2 |
3 |
ACU 410- 18 |
2 |
4 |
ACU 410- 19 |
3 |
5.5 |
ACU 410- 21 |
3 |
7.5 |
ACU 410- 22 |
3 |
9.2 |
ACU 410- 23 |
4 |
11 |
ACU 410- 25 |
4 |
15 |
ACU 410- 27 |
5 |
18.5 |
ACU 410- 29 |
5 |
22 |
ACU 410- 31 |
5 |
30 |
ACU 410- 33 |
6 |
37 |
ACU 410- 35 |
6 |
45 |
ACU 410- 37 |
6 |
55 |
ACU 410- 39 |
6 |
65 |
ACU 410- 43 |
7 |
75 |
ACU 410- 45 |
7 |
90 |
ACU 410- 47 |
7 |
110 |
ACU 410- 49 |
7 |
132 |
ACU 410- 51 |
7 |
160 |
ACU 410- 51 |
7 |
200 |
ACU 410- 51 |
8 |
160 |
ACU 410- 53 |
8 |
200 |
ACU 410- 55 |
8 |
250 |
ACU 410- 57 |
8 |
315 |
ACU 410- 59 |
8 |
355 |
ACU 410- 61 |
8 |
400 |
Type |
Size |
Power kW* |
ACU 510- 51 |
8 |
160 |
ACU 510- 53 |
8 |
200 |
ACU 510- 55 |
8 |
250 |
ACU 510- 57 |
8 |
315 |
ACU 510- 59 |
8 |
355 |
ACU 510- 61 |
8 |
400 |
Type |
Size |
Power kW* |
ACU 610- 51 |
8 |
160 |
ACU 610- 53 |
8 |
200 |
ACU 610- 55 |
8 |
250 |
ACU 610- 57 |
8 |
315 |
ACU 610- 59 |
8 |
355 |
ACU 610- 61 |
8 |
400 |
|
