FREQUENCY INVERTERS

High power density, versatile and compact

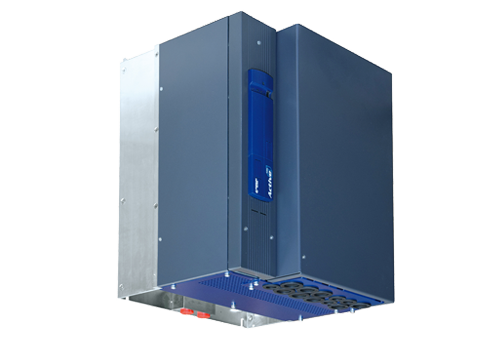

Model: Active Cube 7 - 160kW

Datasheet:  Download here

Description:

The Active Cube 7 is now available in 160 kW at 400 VAC and with the fluid cooling option can achieve the performance of a 200 kW inverter at 400 VAC.  This new product provides the benefit of a high power compact solution with increased service life

Technical data:

Supply Voltage
400V (+/- 15%) / 50-60Hz (+/-10%)

Output nominal current
150% for 1 min, 180% for 1 sec

Switching Frequency
2,4, 8 kHz

Main Standard Hardware features
• Integrated safe torque off (STO Sil2) function
• External 24Vdc supply
• Option module absolute position encoder
• Motor temperature monitoring
• Prepared for liquid cooling
• 1 additional relay for external precharge
• Easily to be used as active front end unit

Main Software Features
• Touch probe
• Auto start-up and commissioning
• Auto reset after failure
• Master / Slave function with electronic gear
• Power failure regulation
• Function for lift, crane and winch applications
• Energy saving functions
